BCA Colorimetric Protein Assay
This example method provides a freely adjustable framework for measuring the adaptability of the OneLab environment to workflows from different application fields. It helps to understand various nuances of the code-free, universal protocol designer and provides general indications as to the feasibility of a project. Scripts generally require fine adjustment to correct for variables and support specific labware implementation.
The Bicinchoninic Acid (BCA) Protein Assay is a very common colorimetric assay for sensitive detection and measurement of total protein concentration compared to a protein standard curve. It provides simple and accurate quantification of total protein in solution and is well suited to a range of applications in protein research, including chromatographic purification, cell protein extraction, screening of soluble fusion proteins, and monitoring of protein contamination. One advantage of the BCA Protein Assay is its compatibility with protein samples containing low to moderate amounts of detergent.
Determination of Protein Concentration using the BCA Protein Assay
The BCA Protein Assay involves two reactions. The first reaction is the reduction of cupric ions Cu2+ to cuprous ions Cu+ by the peptide bonds of the protein (Figure 1A). The amount of reduced copper is proportional to the amount of protein in the sample. The second reaction comprises the highly sensitive and selective colorimetric detection of the cuprous cations by the Bicinchoninic Acid. Two BCA molecules chelate one cuprous cation, forming an intense purple-colored BCA-Cu+ complex (Figure 1B). This product is water-soluble and strongly absorbs light at a wavelength of 562 nm.
Figure 1: Chemistry of the BCA Protein Assay. Schematic illustrations showing (A) the chelation of copper with protein and reduction of Cu2+ to Cu+ by the protein and (B) the formation of a purple-colored BCA/Cu+ complex (1).
The absorbance capacity increases linearly with increasing protein concentrations in the range of 0.02-2 mg/mL. The concentration of the protein of interest can then be determined by measuring the absorbance of the colored reaction product and comparing it to the protein standard curve (Figure 2). It is worth noting that the maximum absorbance of the BCA-Cu+ complex occurs at 562 nm. The absorbance can also be measured at any wavelength between 540 nm and 590 nm with minimal loss of signal. However, measuring the absorbance at a wavelength other than 562 nm may result in a standard curve with a lower slope, thereby reducing the sensitivity of the assay.

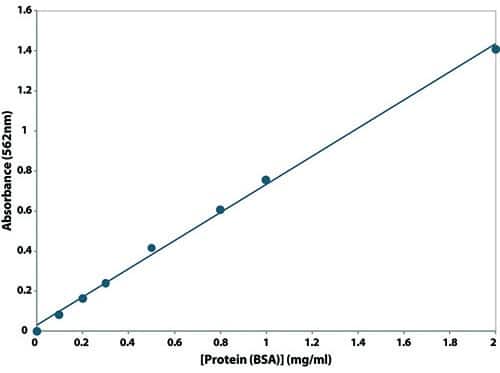

Figure 2: Standard curve of the Bovine Serum Albumin (BSA). Absorbance is measured at 562 nm for a working range between 0.2 mg/mL and 2 mg/mL. Source: Product page “BCA Protein Assay”, G-Biosciences.
Unlike other colorimetric dye-binding assays, the BCA Protein Assay reacts more uniformly to differences in protein composition. Indeed, the peptide backbone along with the reactive amino acids, cysteine, tyrosine, and tryptophan in the protein sequence contribute together to the reduction of copper and consequently to the BCA-mediated color formation, thereby helping to minimize protein-to-protein variation caused by protein compositional differences.
Recommendations to Ensure Reliable Results
Two main conditions should be satisfied to guarantee accurate and reliable measurement with the BCA Protein Assay:
- The rate of BCA-mediated color formation depends on the incubation temperature, which is necessary to achieve optimal sensitivity. Therefore, standards and protein samples should be assessed simultaneously to ensure similar incubation time and temperature.
- The Contamination of protein samples with substances, such as reducing agents, copper chelators, or single reactive amino acids can interfere with the assay, hindering the accuracy of protein quantitation. As a consequence of this, it is crucial to have either high-quality protein samples or to ensure the elimination of background interference from other reactants before conducting the BCA protein assay.
BCA Protein Assay by G-Biosciences
The BCA Protein Assay from G-Biosciences comprises two assay formats based on the dynamic range required to measure the concentration of the protein of interest. It can be performed either in a 1mL cuvette assay or in micro-wells. The Standard BCA Protein Assay enables the measurement of protein concentrations from 10 μg/mL to 2000 μg/mL with incubation at 37°C for 30 min or room temperature for 2 hours. The BCA color formation, triggered by copper reduction, is not an endpoint reaction but adds flexibility to the assay. In other words, the incubation time and temperature can be modulated to achieve the desired color development. Increasing the temperature enables a higher sensitivity (lower limit of detection) to be attained. The Enhanced BCA Protein Assay (incubation at 60°C for 60 min) can detect proteins within a working range of 5 μg/mL to 250 μg/mL, which facilitates the quantification of low-abundance proteins and more diluted samples.
Automation of the BCA Protein Assay Using the Andrew+ Pipetting Robot
The micro-well protocols for Standard BCA Protein Assay and for Enhanced BCA Protein Assay have the same working deck layout when automated using the Andrew+ Pipetting Robot configured with the Plate Heater-Shaker+ (Figure 3).
Figure 3: The Andrew+ deck layout for both the "Micro-Well Protocol for Standard BCA Protein Assay" and the "Micro-Well Protocol for Enhanced BCA Protein Assay". The Plate Heater-Shaker+ uses the flat-bottom plate adaptor to support the Greiner, 96-well PS F-bottom clear microplate (Greiner Bio-One, p/n 655101).
▶ Micro-Well Protocol for Standard BCA Protein Assay – Andrew+
- Estimated time of execution | 57min 9sec
- Tip consumption | 16x 5-350 μL tips, 2x 10-1000 μL tips, and 1x 100-10,000 μL tips
▶ Micro-Well Protocol for Enhanced BCA Protein Assay – Andrew+
- Estimated time of execution | 1h 24min 4sec
- Tip consumption | 12x 5-350 μL tips, 5x 10-1000 μL tips, and 1x 100-10,000 μL tips
Andrew+ System Components: Dominos, Devices, Electronic Pipettes & Tips
➤ Micro-Well Protocol for BCA Protein Assay (Standard or Enhanced) – Andrew+ w/ Heater-Shaker+
- Microtube Domino | p/n 186009601
- Microplate Domino | p/n 186009600
- 50mL Conical Centrifuge Tube Domino | p/n 186009614
- 2x Tip Insertion System Domino | p/n 186009612
- 10mL Tip Rack Holder Domino | p/n 186010098
- Plate Heater-Shaker+ with Flat-bottom Plate Adaptor | p/n 186010495
- Andrew Alliance Bluetooth Electronic Pipette, 1-ch 300 μL | p/n 186009606
- Andrew Alliance Bluetooth Electronic Pipette, 1-ch 1000 μL | p/n 186009766
- Andrew Alliance Bluetooth Electronic Pipette, 1-ch 10 mL | p/n 186009767
- Sartorius, Optifit Tips, 5-350 μL | p/n 700013297
- Sartorius Optifit Tips, 10-1000 μL | p/n 700013298
- Sartorius, Optifit Tips, 100-10,000 μL | p/n 700013301
(1) Chen, Lei, Zhi Yu, Youngju Lee, Xu Wang, Bing Zhao, and Young Mee Jung. “Quantitative Evaluation of Proteins with Bicinchoninic Acid (BCA): Resonance Raman and Surface-Enhanced Resonance Raman Scattering-Based Methods.” Analyst 137, no. 24 (November 12, 2012): 5834–38.
